Modular biogas treatment systems

Complete modular biogas systems from feedstock to energy.

EnviroBox Biogas Systems, a division of Municipal Tank Works, LLC, delivers full-facility anaerobic digestion using our proven modular steel tank platform. From feedstock receiving through energy generation and digestate management — engineered for the renewables industry.

Complete biogas system

Nine modular tanks. One integrated facility.

The EnviroBox Biogas System is a complete anaerobic digestion facility built from ASTM A572 Gr. 50 modular steel tanks with high-performance 3-coat epoxy interior lining (20–30 mils DFT). The system processes 1,300–5,300 GPD of feedstock, produces 3,600–10,600 ft³/day of biogas, and generates 90–540 kWh/day of electricity plus 100–600 kWh(th)/day of recoverable heat.

Whether developing a greenfield anaerobic digestion facility or expanding an existing operation, EnviroBox provides a modular, standards-compliant platform that scales with your production requirements.

~498,754

Gallons total liquid

25–45

Day hydraulic retention

Process stages

From raw feedstock to renewable energy and biofertilizer.

Every stage of the biogas production process is housed in purpose-built EnviroBox modular steel tanks. All units are constructed from ASTM A572 Gr. 50 steel with 3-coat HP epoxy interior lining per NACE SP0108 / AWWA D103.

01

Feedstock Receiving

2 tanks53′ × 8′ × 20′63,435 gal each

Raw material intake and storage buffer. Gravity or pump-fed up to 2,500 GPM with ultrasonic level transmitters and SCADA-integrated high/low alarms.

  • ASTM A572 Gr. 50; 3/16″–1/4″ plate; bolted modular panels
  • 3-coat HP epoxy; 20–30 mils DFT; NACE SP0108 / AWWA D103
  • 2 HP submersible mixer; 20 min/hr; NEC Cl. I Div. 2
  • Flat steel cover panels with vent; no gas holder required
02

Mixing & Equalization

1 tank53′ × 8′ × 26′82,465 gal

pH adjustment, dilution, and feedstock homogenization. Auto-controlled NaOH/H₂SO₄ metering via in-line pH probe with 1–3 day equalization buffer at 1,300–5,300 GPD to primary digesters.

  • Chemical-resistant HP epoxy; 25 mils DFT; pH range 4–12
  • 3 HP progressive cavity pump recirculation; SS 316 wetted
  • Flow-metered potable or process water dilution; SCADA controlled
  • NFPA 820 ventilation; OSHA 1910.146 confined space entry plan
03

Primary Digestion

2 tanks53′ × 8′ × 32′101,496 gal each

Main anaerobic digestion at mesophilic (95–99°F) or thermophilic (126–131°F) temperatures. 20–30 day HRT with OLR of 0.06–0.19 lb VS/ft³/day producing ~1,800–5,300 ft³/day biogas per unit.

  • HDPE double-membrane gas dome; 40–60 mil; GRI-GM13 / ASTM D7407
  • CHP jacket water HEX; 75,000–200,000 BTU/hr per tank; ASME Sec. VIII
  • Submersible pump + recirculation; 3–7 HP; ATEX NEC Cl. I Div. 1
  • Class B (meso) / Class A (thermo); 40 CFR Part 503
04

Secondary Expansion

2 tanks53′ × 8′ × 32′101,496 gal each

Extended hydraulic retention time with +15–35% additional biogas recovery. Dual-purpose secondary digestion and biogas buffer providing 2–6 hours uninterrupted CHP runtime per unit and 55–72% system-wide VS reduction.

  • +5–15 days added to system HRT; identical construction to primary
  • ~11,000 ft³ / ~82,300 gal equiv. usable gas storage per unit
  • 0.5–2.5 in. W.C. operating pressure; same HP epoxy; NACE SP0108
  • Pt100 temp, ultrasonic level, pressure, pH/ORP; SCADA integrated
05

Biogas Buffer & Gas Holder

1 tank53′ × 8′ × 32′~13,568 ft³ gas cap.

Peak-shaving gas storage providing 4–8 hours of CHP runtime. HDPE double-membrane dome rated −40°F to +165°F with automated pressure management and full gas conditioning train.

  • 0.5–2.5 in. W.C. operating; PRV set at 3.0 in. W.C.; NFPA 69
  • DN6″ SS 316 gas offtake; motorized ball valve; ASME B16.5
  • Iron oxide media H₂S scrubber; reduces to <200 ppm pre-engine
  • Inline CH₄/CO₂/O₂/H₂S gas analyzer; 4–20 mA + Modbus; NEMA 4X
06

Digestate Storage

1 tank53′ × 8′ × 20′63,435 gal

60+ day liquid digestate holding for nutrient management. Class B or Class A biosolids with valuable biofertilizer content of ~200–400 lb N/acre-ft. Screw press separation produces low-odor compost at ~0.5–2 tons DM/day.

  • Chemical-resistant epoxy; NACE SP0108; odor-sealed flat cover
  • 2–10 HP screw press; 25–35% TS fiber out; filtrate returns to mix
  • NRCS 632 Nutrient Management Plan; annual soil sampling
  • SPCC plan per 40 CFR §112; 110% secondary containment

CHP power generation

Convert biogas into on-site electricity and heat.

The integrated combined heat and power (CHP) system converts biogas into 50–250 kW of electrical output and 100–600 kWh(th)/day of recoverable thermal energy. Jacket water at 160–180°F feeds back into all four digester heating loops, driving overall CHP efficiency to 78–85%.

Electrical Output

90–540 kWh/day at 120V/240V/480V 3-phase. Net of ~8–15% parasitic load. Grid-tie with IEEE 1547 utility disconnect.

Thermal Recovery

100–600 kWh(th)/day from jacket water plus additional 30–50 kW from exhaust flue gas heat exchanger.

Emissions Compliance

NSPS 40 CFR §60 Subpart JJJJ; CARB compliant; NOx <1.0 g/HP-hr. Acoustic enclosure <70 dBA at 50 ft.

Grid Integration

Automatic transfer switch with island mode capability. CAT/Cummins biogas-flex engine; skid-mounted.

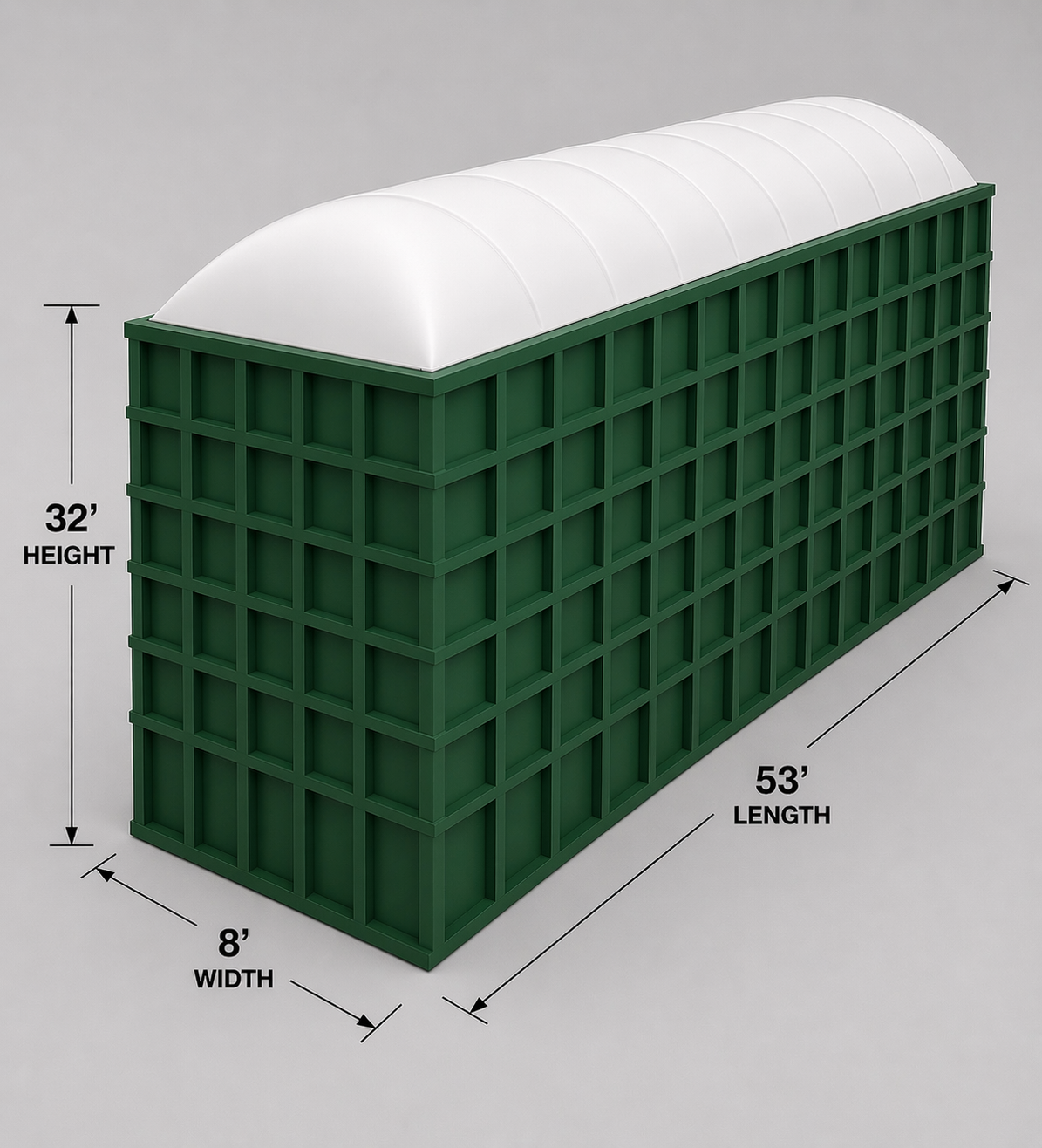

3D rendering of an EnviroBox modular steel tank showing 53-foot length, 8-foot width, and 32-foot height dimensions
SCADA control system screenshot

SCADA & controls

Full-facility automation and remote monitoring.

An Allen-Bradley ControlLogix PLC with 15″ color touchscreen HMI manages all process variables across 100+ analog/digital I/O points. 4G LTE and Ethernet connectivity enables web-based remote HMI, SMS/email alarms, and ISA-99 cybersecurity compliance.

Ultrasonic + hydrostatic level redundancy on all tanks; 4–20 mA
Pt100 RTD temperature monitoring (top/mid/bottom per digester); ±0.5°F
Fixed CH₄ (LEL), H₂S, CO detector arrays; UL 2075; NFPA 72
Real-time energy dashboard: kWh, BTU/hr, gas ft³/day, carbon offset
Auto-generated 40 CFR §98 GHG reports; state discharge reports
30-day onboard data historian with weekly LIMS lab integration

Performance

System-wide key performance indicators.

The complete EnviroBox Biogas System is designed to achieve the following performance targets across all operating modes and feedstock types.

65–68%

CH₄ Conversion Efficiency

55–72%

System VS Destruction

33–38%

CHP Electrical Efficiency

78–85%

CHP Combined Efficiency

>99.99%

Pathogen Reduction (Thermo)

330–880 tCO₂e/yr

Carbon Offset Potential

4–8 hrs CHP

Biogas Buffer Coverage

~498,754 gal

System Liquid Capacity

>95% annual

Target System Uptime

100% spark-tested

Epoxy Coating Integrity

Complete system inputs & outputs

ParameterFeedstock InBiogas OutElectricityThermalDigestate
Daily1,300–5,300 GPD3,600–10,600 ft³/day90–540 kWh/day100–600 kWh(th)/day1,100–4,800 GPD
Weekly9,000–37,000 GPD25,000–74,000 ft³/wk630–3,780 kWh/wk700–4,200 kWh(th)/wk7,700–33,600 GPD
Annual~3.3–13.5M gal/yr~1.3–3.9M ft³/yr~33K–197K kWh/yr~36.5K–219K kWh(th)/yr~400K–1.75M gal/yr
Quality6–12% TS; pH 5–855–75% CH₄3-phase output160–180°F jacket waterClass B or A; 40 CFR §503

Project economics

Scalable systems with proven return on investment.

Revenue streams include on-site electricity generation, RNG premiums ($15–$30/MMBtu + D3 RINs), gate fee income ($15–$55/ton food waste tipping), and carbon credit monetization (LCFS / voluntary markets). Payback periods shorten with IRA §45Z incentives.

Small System

2 primary + 2 secondary

Daily biogas3,600–6,000 ft³/day
Daily electricity90–270 kWh/day
Annual electricity33K–99K kWh/yr
Carbon offset165–440 tCO₂e/yr
RNG premium (opt.)$38K–$75K/yr
Indicative CAPEX$1.2M–$2.0M
Simple payback4–8 years
Most popular

Medium System

4 primary + 2 secondary

Daily biogas5,000–9,000 ft³/day
Daily electricity150–400 kWh/day
Annual electricity55K–146K kWh/yr
Carbon offset275–730 tCO₂e/yr
RNG premium (opt.)$65K–$130K/yr
Indicative CAPEX$1.8M–$3.0M
Simple payback3–7 years

Large System

4 primary + 4 secondary

Daily biogas7,000–14,000 ft³/day
Daily electricity250–540 kWh/day
Annual electricity91K–197K kWh/yr
Carbon offset450–1,200 tCO₂e/yr
RNG premium (opt.)$105K–$210K/yr
Indicative CAPEX$2.8M–$4.5M
Simple payback3–6 years

Services

New systems, retrofits, or individual components.

Whether you need a complete turnkey facility for a greenfield site, modular expansion tanks for an existing anaerobic digester, or individual components and replacement parts — EnviroBox has you covered.

Greenfield Design & Build

Complete facility design from feedstock receiving through energy generation and digestate management. Site-specific engineering, permitting support, and full turnkey delivery for new anaerobic digestion projects.

  • Full process design with SCADA integration
  • Civil, mechanical, and electrical engineering
  • Permitting assistance (air, water, land application)
  • Commissioning and startup support (8–12 weeks to design load)

Retrofit & Expansion

Add EnviroBox modular tanks to existing biogas operations. Each secondary expansion pair adds ~101,496 gallons and +15–35% additional biogas recovery with 4–8 weeks to stable gas production per unit.

  • Modular expansion in paired tank increments
  • Gas header tie-in with motorized SS isolation valves
  • CHP heat loop integration; 75K–200K BTU/hr per tank
  • 15–20 new SCADA tags per unit; remote HMI update

Parts & Components

Individual EnviroBox tanks, HDPE dome membranes, epoxy coating systems, heat exchangers, gas scrubbers, and SCADA control packages available as standalone components for self-integration.

  • ASTM A572 Gr. 50 modular steel tank panels and covers
  • HDPE double-membrane dome assemblies (40–60 mil; GRI-GM13)
  • H₂S scrubber and gas conditioning skids
  • Allen-Bradley ControlLogix PLC and HMI packages

Safety & compliance

Built to US regulatory standards from day one.

Every EnviroBox Biogas System is designed, constructed, and commissioned in accordance with an extensive framework of US codes and standards including ASTM, NFPA, OSHA, EPA, ASME, AISC, NACE, and ANSI requirements.

Explosion & Fire Prevention

NEC/NFPA 70 Art. 500 · NFPA 69 · NFPA 820

  • Class I Div. 1 inside all dome gas spaces; Div. 2 within 10 ft perimeter
  • Deflagration flame arrestors on ALL gas outlet connections; NFPA 69 / API 2000
  • Auto gas shutoff (motorized ball valve) at >10% LEL CH₄; fail-safe closed
  • Static grounding and bonding on all domes, pipework, and steel panels; NFPA 77
  • Enclosed emergency ground flare; auto-ignition; 120% peak gas flow capacity

Gas & Process Monitoring

UL 2075 · NFPA 72 · ISA-84 / ISA-99

  • Fixed catalytic bead CH₄ detectors at each tank: 10% LEL warning; 20% LEL shutdown
  • Electrochemical H₂S detectors: 5 ppm TWA warning; 10 ppm ceiling evacuation
  • CO detectors at CHP room and all access points: 35 ppm TWA alarm; 200 ppm peak
  • Continuous SCADA telemetry with 30-day local historian; 100+ tags; ISA-99 cyber
  • Weekly lab analysis: TS/VS, ammonia-N, VFA, alkalinity; monthly fecal coliform

Overpressure & Structural

ASME Sec. VIII · API 2000 · IBC 2021 · AISC 360-22

  • PRV set at 3.0 in. W.C. on each gas-holding tank; manual test quarterly
  • Vacuum protection valve (VPV) on each dome; prevents collapse during drawdown
  • Structural PE inspection: visual monthly; engineering survey annually; all 9 tanks
  • NACE CIP-certified coating inspection at commissioning and every 5 years; ASTM D4541
  • Outer dome blower for each unit; pressure switch alarm; SCADA auto-restart

Personnel Safety & Permits

OSHA 29 CFR 1910 · EPA 40 CFR · ANSI Z358.1

  • Permit-required confined space entry program per OSHA 1910.146; retrieval system
  • Lockout/tagout (LOTO) procedures for all 9 tanks; annual training
  • PSM / RMP threshold evaluation for on-site H₂S and CH₄ quantities
  • PPE station at each tank cluster: SCBA, H₂S escape set, face shield, chemical gloves
  • SPCC plan per 40 CFR §112; 110% secondary containment; monthly inspection

Referenced standards include: AISC 360-22 · AWS D1.1 · ASTM A572/D7407/D4541 · NACE SP0108/SP0188 · AWWA D103 · API 652/520/2000/RP 2003 · NFPA 69/70/72/77/780/820 · OSHA 29 CFR 1910.119/.138/.146/.147/.1000 · EPA 40 CFR §60/§98/§112/Part 503 · ACI 318-19 · ASME B31.3/Sec. VIII · ASCE 7-22 · IBC 2021 · GRI-GM13 · UL 2075/499/844 · ANSI Z358.1 · ISA-84/ISA-99 · AGA Report No. 9 · IEEE 1547 · NRCS Practice 313/632

Download the complete technical brochure

Full tank specifications, process diagrams, safety systems, project economics, and retrofit parameters.

Download PDF

Contact

Let’s engineer your biogas system.

Reach Municipal Tank Works, LLC for complete biogas system design, retrofit engineering, component supply, and project-specific technical requirements.
